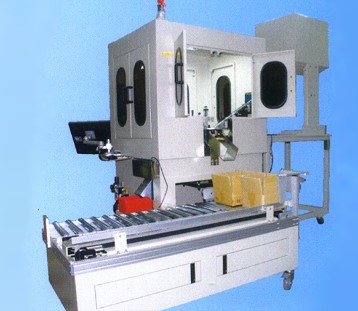

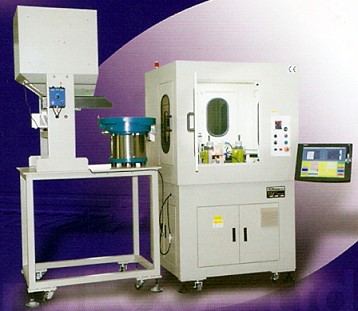

Blind Rivet & Rivet Nut CCD lmage-display Sorting Machine

MODEL:GCM-648-2

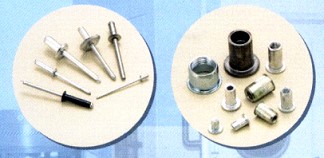

Image-Display Sorting Items
LENGTH OF BLIND RIVET HEAD OUTSIDE DIAMETER
OF BLIND RIVET		 HEAD LENGTH OF
BLIND RIVET
OUTSIDE DIAMETER
LENGTH OF RIVET NUT		 HEAD DIAMETER OF
RIVET NUT		 THREAD OR NO
THREAD

※Various and Special Inspections Please Ask For Details
CRACK INSIDE DIAMETER
TRANSFIGURE
※Inspect dimensions d1,d2,K,L ※Inspect dimensions d1,d2,I,M,W
‧It is easy to adjust.
‧If change size,it needs to change disk.
‧It provides counting and pacing facility.
‧It includes manual feeder, hopper and vibratory feeder.

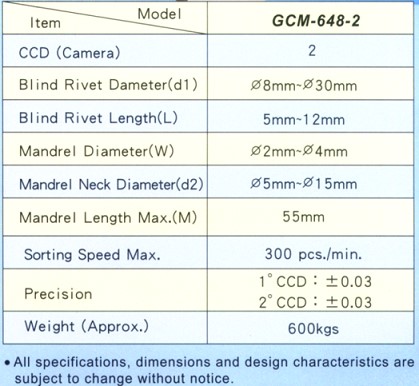

Specifications:
